PLACA

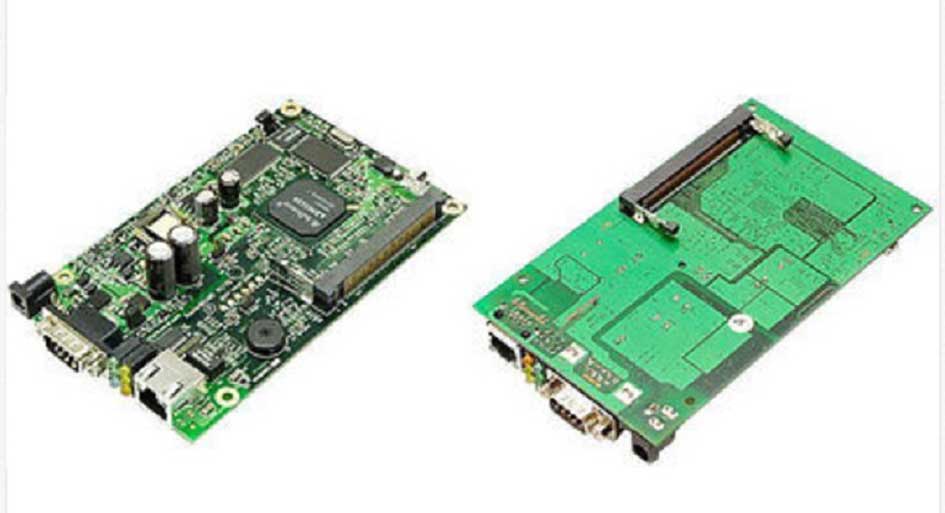

MIKROTIK RB-112 (sin radio)

Apta para radios en 900, 2400 o 5800 MHz. Incluída tecnología
MIMO (doble canal)
1 (una) entrada
ethernet.
Para ser usada como cliente o station u operación Punto
a Punto PAP
USADA
Funcionando.
Probada. Sin garantía.
Características:
MIPS32 4Kc based 175MHz embedded processor
Memory 16MB SDRAM onboard memory chip
Boot loader RouterBOOT, 1Mbit Flash chip
Data storage 64 onboard NAND memory chip
Ethernet ports One 10/100 Mbit/s Fast Ethernet port supporting
Auto-MDI/X
MiniPCI slot Two MiniPCI Type IIIA/IIIB slots
Speaker Mini PC-Speaker
Serial ports One DB9 RS232C asynchronous serial port
LEDs Power, 2 LED pairs for MiniPCI slots, 1 user LED
Power options IEEE802.3af Power over Ethernet: 12V or 48V DC (except
power over datalines)
Power jack: 11..60V DC
Power Out Two 3V DC fan power output headers (only one populated
by default), maximal output current - 500mA total
Power Consumption 3-4W without extension cards. Maximum 10W
Dimensions 14.0 cm x 8.5 cm (5.51 in x 3.35 in)
Weight 92 g (3.2 oz)
Temperature Operational: -20C to +70C (-4F to 158F)
Humidity Operational: 70% relative humidity (non-condensing)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
